Generate a flow diagram of input and output of SAS
programs based on SAS log
%flow (log = SAS log file,
output = html flow diagram);
Where | Is
Type... | And
represents... |
log | C (40 chars) | The name of the SAS log including the path.
If the path is specified without the file, all SAS log in
the path will be captured. |
output | C (200 chars) | Name of the html file
created. If none is specified, a file named
flow.html is created in the current directory. | Details
This tool generates an html flow diagram based on the SAS
log. It will display a diagram capturing all SAS input and
output documented in the SAS log.

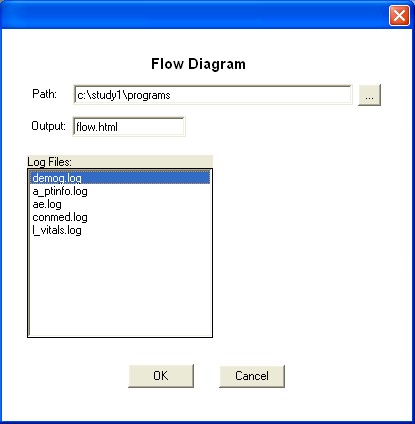

If both the log file and output file specifications were left
blank, an interactive dialog box will be displayed for selection.
The current path is displayed by default but the button next to
the path can be clicked. In that case, a dialog box will
open to prompt the user to select for a path similar to a file
open dialog box. The output HTML file can also be selected
and will be saved in the same directory as the path.
One or more log files can be selected. Once the OK button
is clicked, the flow diagram will be generated for all the
selected log files.
Example %flow (log = demog.log,
output = demog_flow.html);%flow (log = c:\temp\demog.log,
output = demog_flow.html);
%flow (log = c:\myprogram);
*** Interactive Dialog Selection ***;
%flow;
|
